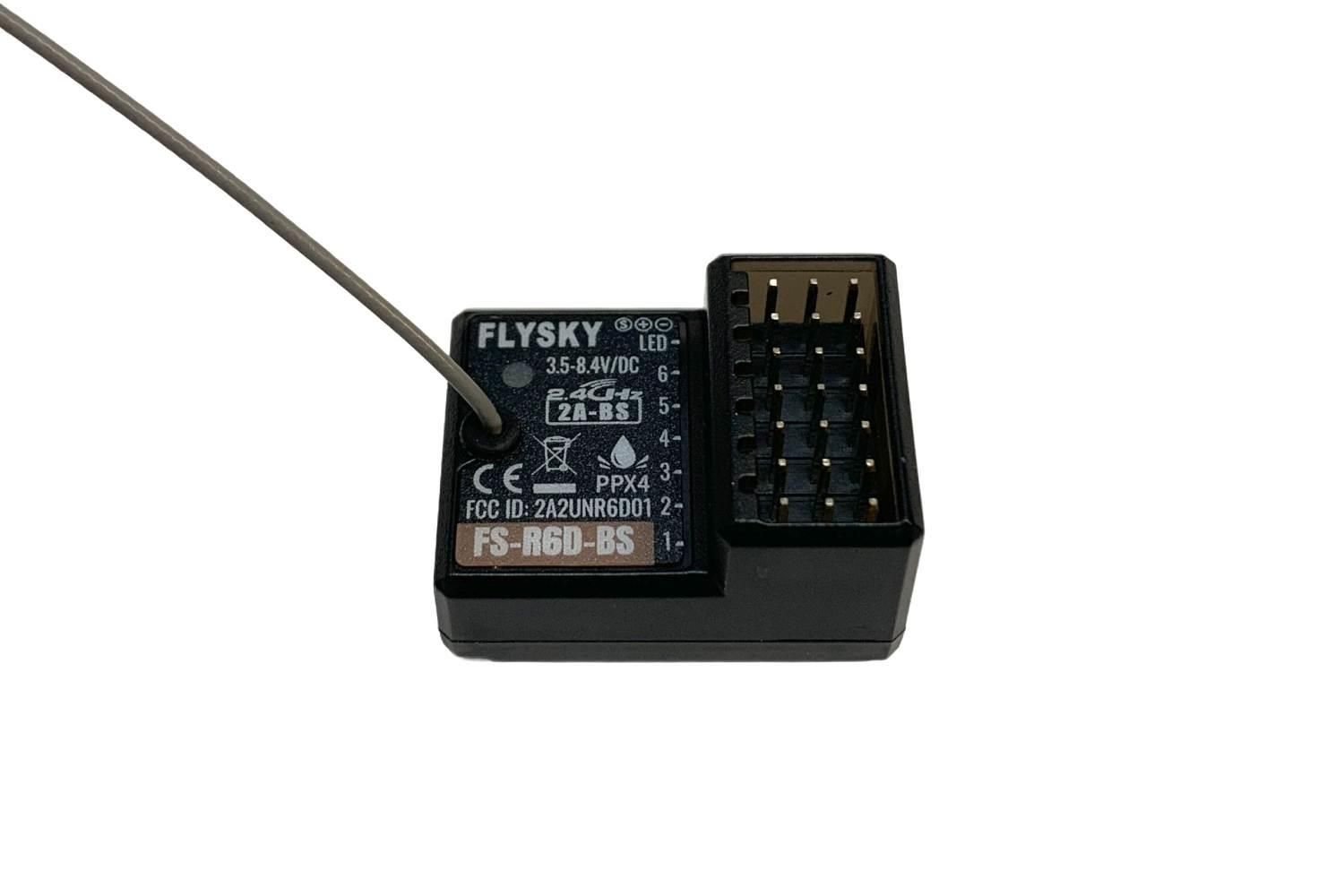

Flysky FS-R6D-BS 2.4ghz Receiver

FS-R6D-BS operating on the AFHDS 2A-BS protocol, the FS-R6D-BS is a 6-channel receiver with an external single antenna, capable of outputting PWM signals. Designed with a standard form factor, it is compatible with a wide range of vehicle platforms.

Product model：FS-R6D-BS

Compatible transmitter:FS-MG6-BS

Model type:1/8th scale crawler, onroad touring car, trucks

Channels:6

Number of car light groups:6(LED car light interface connected to FS-DB01 car light driver board)

RF:2.4GHz ISM

RF power:<20 dBm

2.4GHz Protocol:2A-BS

Channel Resolution: 4096

Input Power：3.5~8.4V/DC

Antenna Type: Built-in single antenna

Data Output ：PWM

Online Update：No

Temperature range :-10℃ ~ +60℃

Humidity range:20% ~ 95%

Waterproof :PPX4

Size:29.0mmX22.0mmX16.2mm

Weight:7.7g

Certification:CE, FCC ID：2A2UNR6D01
