ROVAN RF5B

1/5th Scale RC Rally Car


Note: Due to transportation this car may arrive with light scratches on the bodyshell. This car now comes with the upgraded transparent quick fill fuel tank as standard.

Rovan's newest addition to their 1/5th Scale Line-Up the F5 Rally Car built with High Quality Nylon & Alloy parts, fitted with a 36cc 2-Stroke Engine and a striking rally body

  • 4-Bolt 36cc Engine
  • Adjustable Shocks
  • Rally Body
  • FSGT3B 2.4 GHz Radio System

4-Bolt 36cc Engine

Rovan have fit a 36cc Engine into the RF5B giving you an immense amount of power from the get go

Adjustable Shocks

The RF5B Comes with adjustable shocks giving you the option to fine tune your drive by changing the shock oil weight, springs

FSGT3B 2.4 GHz Radio System

All our cars come with 2.4 GHz radio systems, this is a major improvement over the old style transmitters which were prone to interface and range issues. 3 Channels and tons of tweaking options make this one of the most popular transmitters available.


Specs

  • Length: 37.4 inches (950mm)
  • Width: 18.7 inches (475mm)
  • Height: 13.8 inches (350mm)
  • Front Wheel Width: 15.7 inches (400mm)
  • Rear Wheel Width: 22.4 inches (570mm)
  • 5mm Billet integrated 6061T6 aluminium alloy chassis
  • 4WD shaft drive system, 7mm front short drive shaft, 7mm rear long driveshaft
  • Front and rear metal differentials with centre metal spool spur and pinion gears
  • Front and rear centre-mounted dual disc brake system (4 brake rotors!)
  • Metal clutch bell support cover
  • 8000 rpm wear-resistant clutch
  • Integrated clutch cup
  • 7mm hydraulic shock absorption
  • F5 second-generation road tire assembly
  • GT-3B 2.4GHz transmitter computer radio with automatic frequency hopping digital system, 10 model memory, servo reversing, Endpoint adjustment, Dual rate, Exponential, Auto brake system (ABS), model name etc.
  • 6V SC4500 mAh Ni-MH battery
  • 40KG digital metal gear throttle/brake servo (Billet servo arm)
  • 2 X 40KG digital metal gear steering servo double servo structure (Billet servo arms)
  • F5 special stainless steel exhaust pipe
  • 700ml large capacity oil can
  • Poly-carbonate material integrated body with special roll cage
  • Front spoiler
  • Double side chassis spoiler
  • Rear spoiler structure rear anti-collision
  • Front and rear balance bars
  • Tools
  • Fuel container


About The engine:

  • Bore diameter * stroke: 39x30/mm
  • Engine displacement: 35.8/cm3
  • Carburetor: Walbro 1107
  • Spark plug: NGK CMR7H
  • Startup mode: Easy Pull start system
  • Intake mode: scavenging
  • Cooling method: forced air cooling
  • Lubrication method: mixing
  • Idle speed: 4500±200/rpm
  • No load maximum speed: 19500/rpm
  • Maximum power: 2.58/13000 kW/rpm
  • Maximum torque: 2.26/9000 N·m/rpm
  • Clutch contact point speed: 8000/rpm

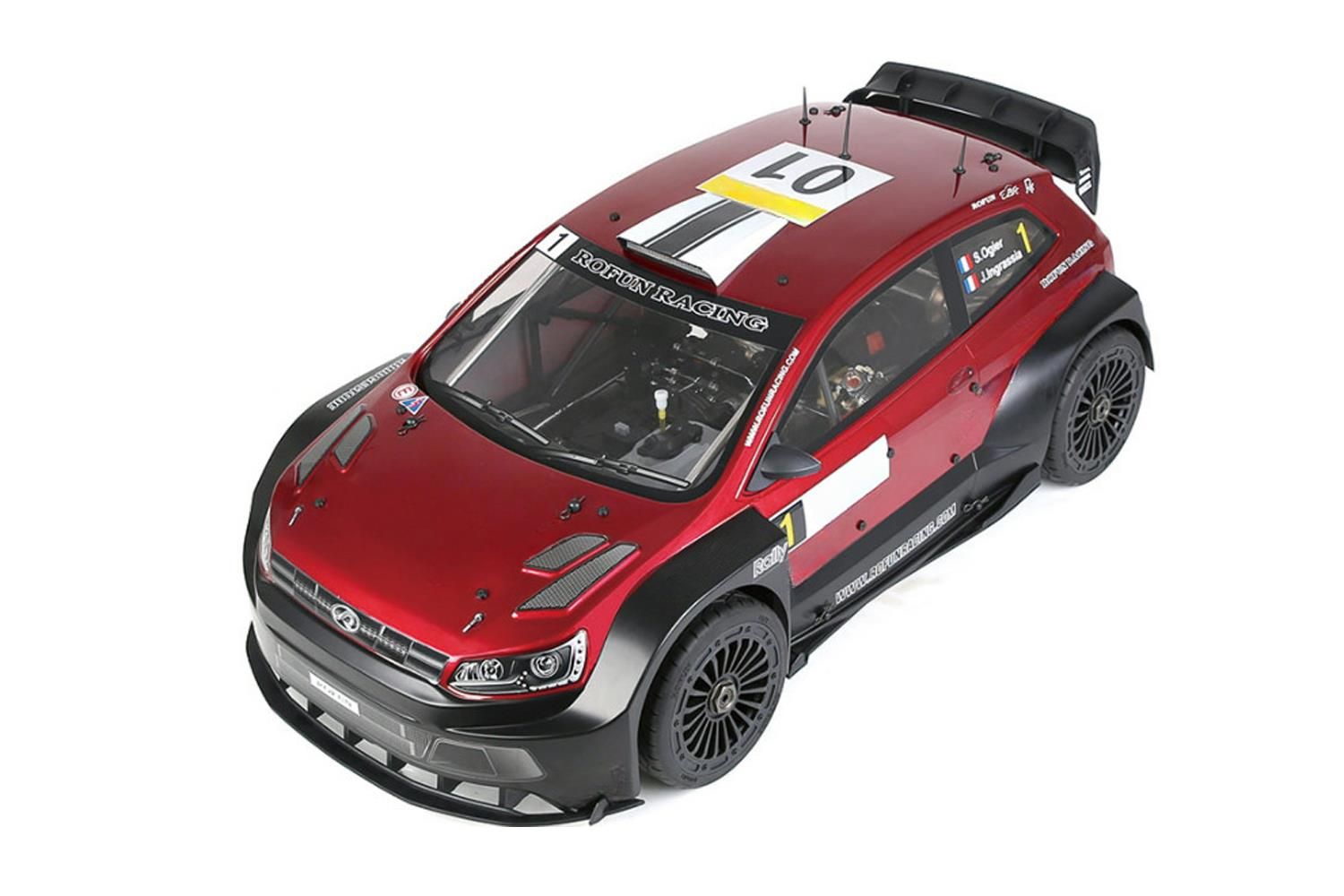

Rovan RF5B

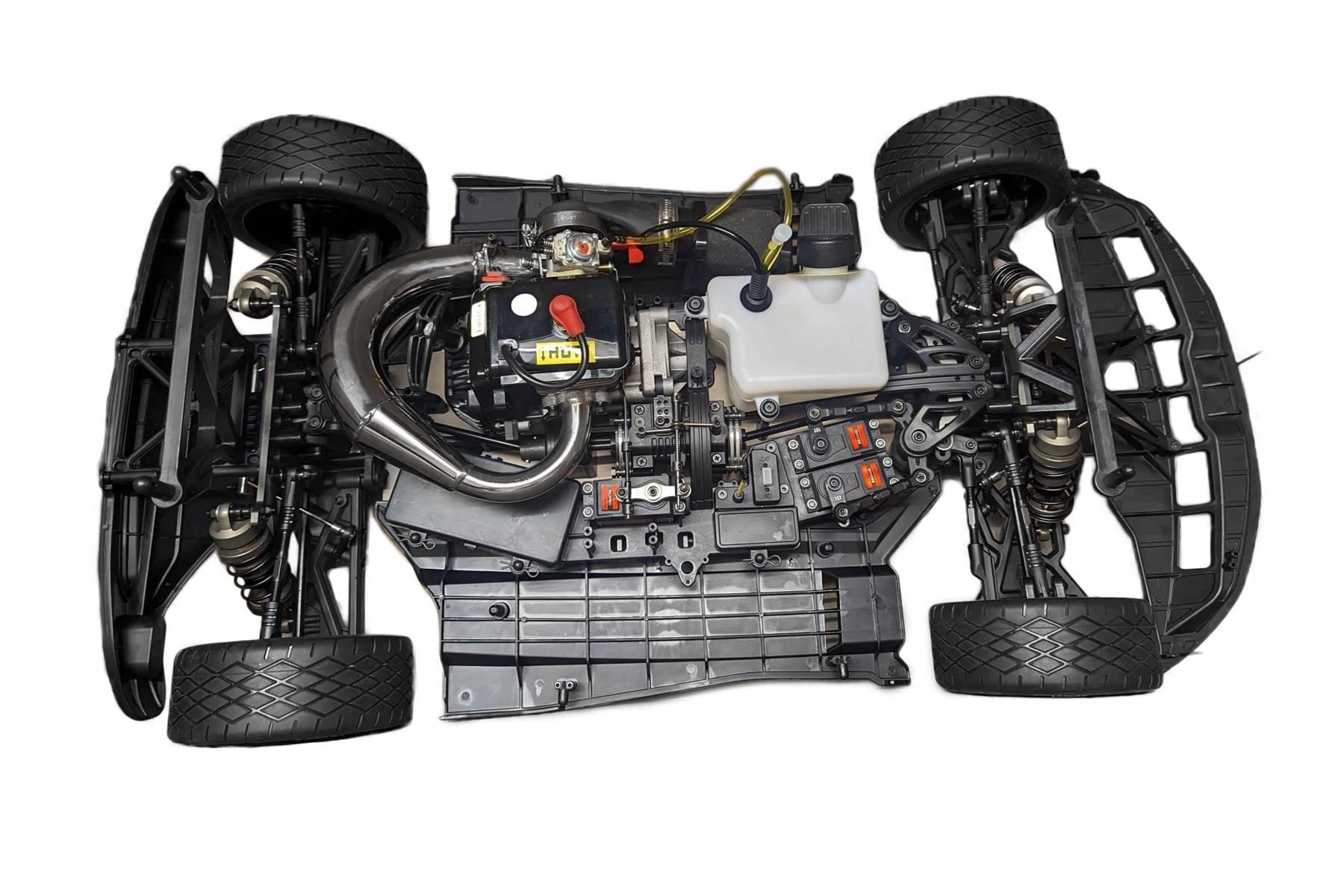

Under the hood

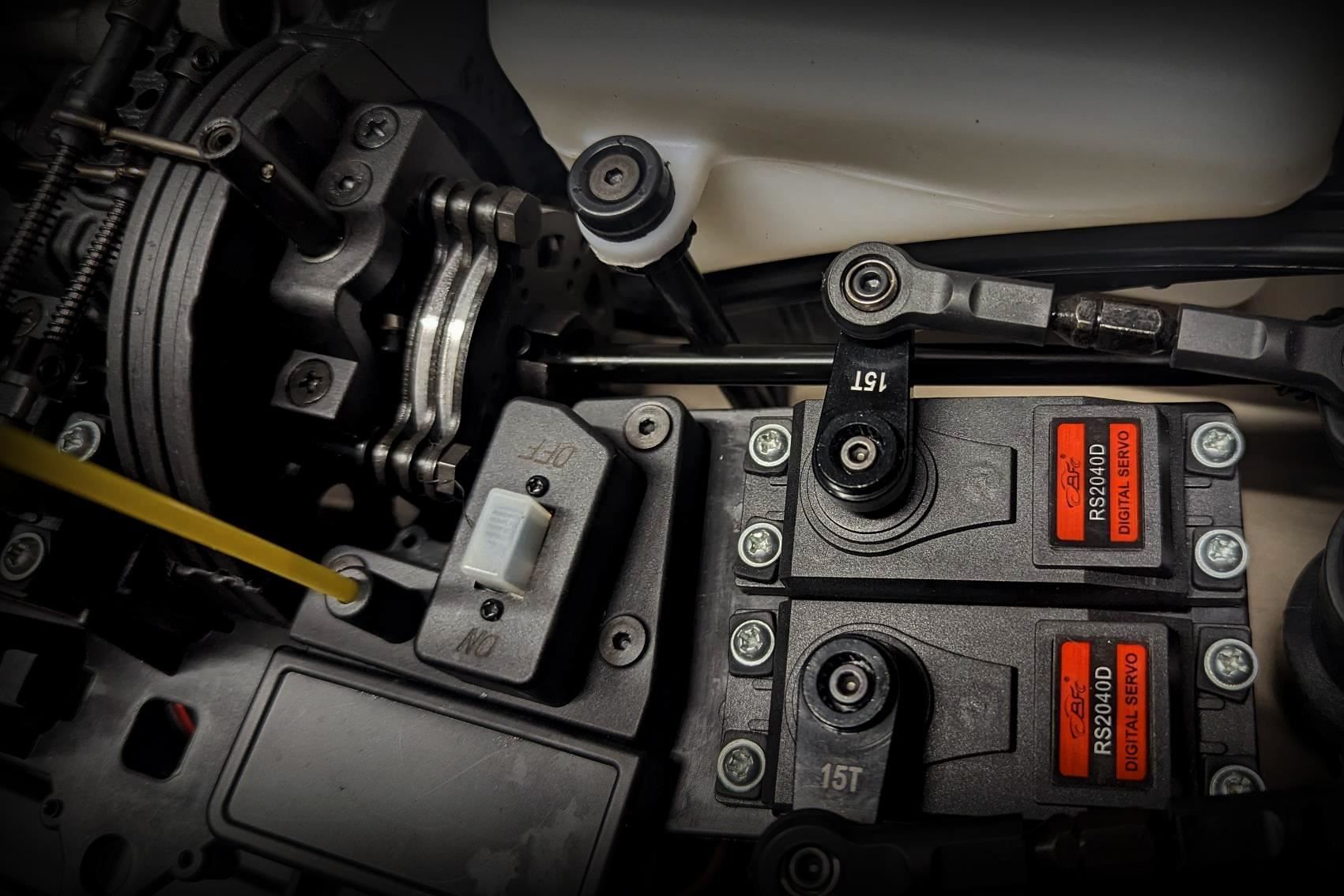

RF5B's Dual Steering Setup

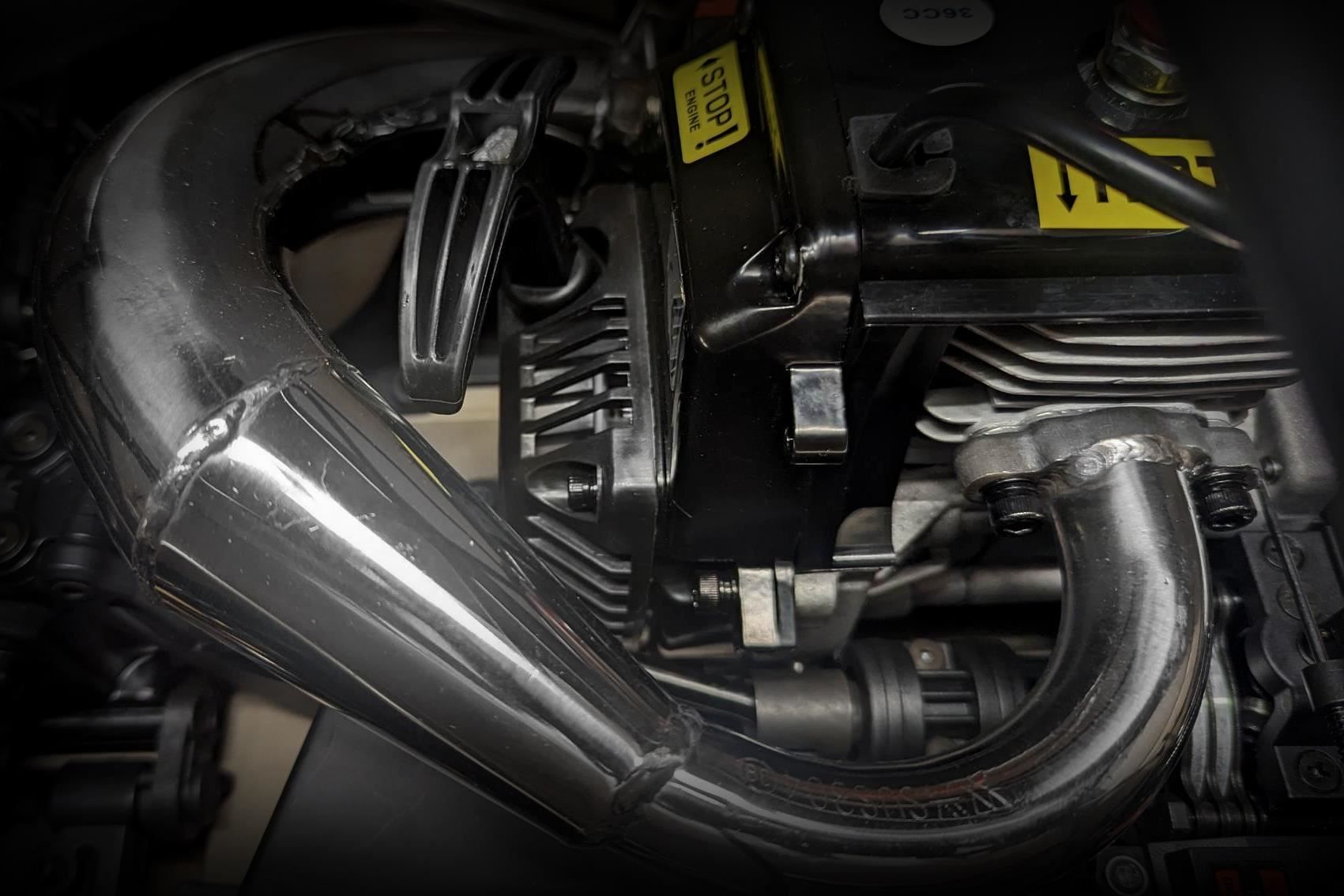

Engine + Exhaust Pipe


NOTICE

Once your Car is received

Please ensure you check your car over for any loose nuts and Bolts, Threadlock as required. Please also check oil levels in your shocks and Differentials and Fill if required BEFORE use. As failure of any parts due to lack of oil or loose parts will not be covered under warranty.

Depending on the terrain you are running on you may need to trim your wheel arches failure to do so can result in the wheels catching the bodyshell on rougher and bumpier terrains

By mixing and running fuel through the truck you confirm that you have done these checks, you are happy with the car and that the item is as described. If you have any queries please contact our support team at the earliest point DO NOT run any RC without following all the safety precautions included with the car and in the included starter guide.

Please Refer to the Starter Guide on our website for any Help before running your car
