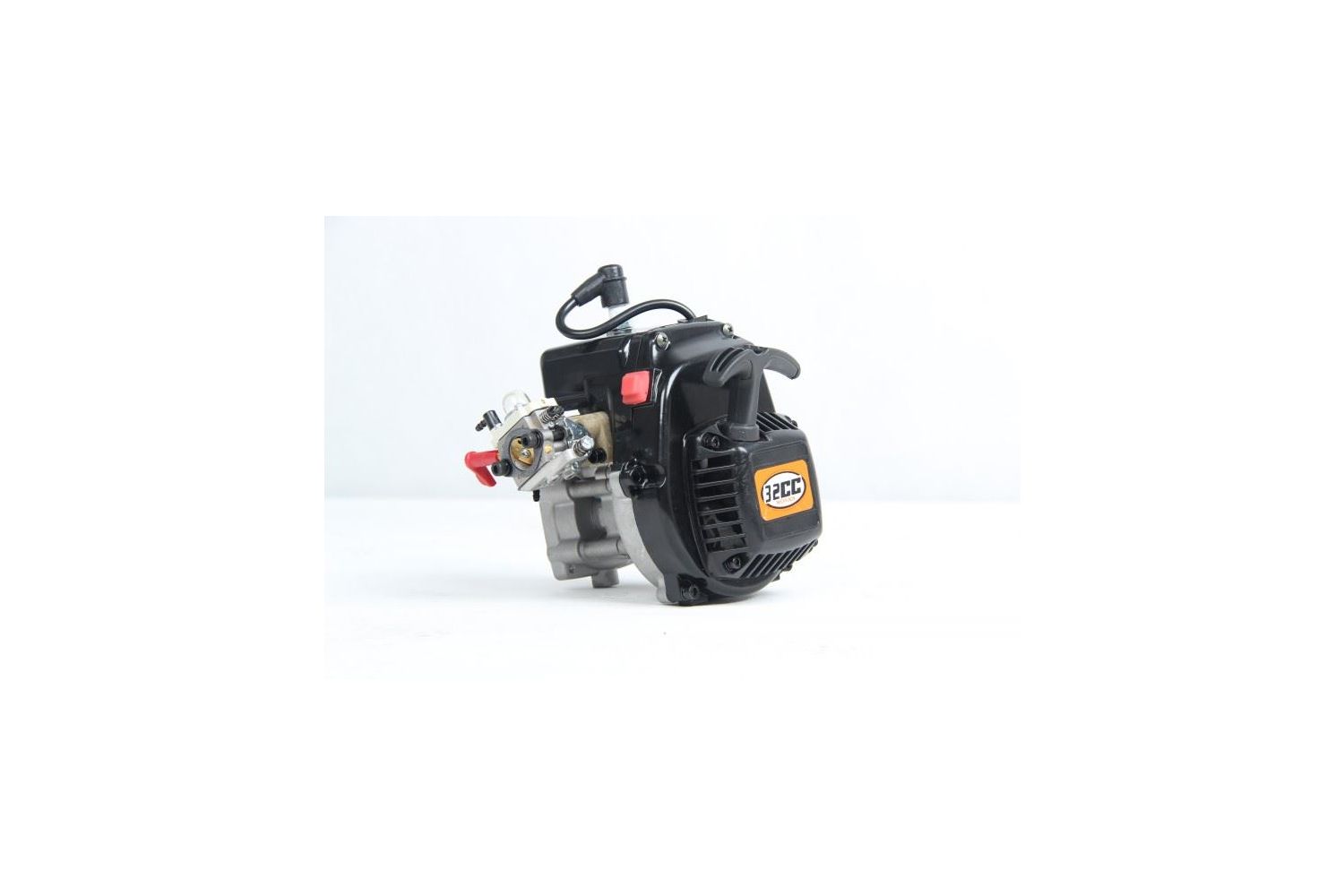

Rovan 32cc 4 Bolt Engine 1191

Rovan 32cc 4 Bolt Engine 1191

---

All new design - redesigned cylinder, crankcase, crankshaft, piston, etc for an Absolute Explosion of Power.

This Rovan 32cc engine has a 38mm bore, and 28mm stroke, for 31.8cc in its stock form. Includes new cylinder design with closed deck transfer ports.

They come with a upgraded Rovan metal clutch & spring already fitted So it's ready to drop into your application of choice

Engine Specification

• Cylinder displacement: 31.8 cm³ / 1.94 cu.inch
• Cylinder bore: 38 mm / 1.5 inch
• Cylinder stroke: 28 mm / 1.1 inch
• Carburettor: Walbro
• Carburettor model name: WT-1191
• Ignition system: TCI
• Spark plug: NGK CMR7H
• Start system: Easy starter

Size

---

• LxWxH 16.7x17.8x19.6 cm / 6.57x7x7.72 inch

Fitment Guide:

---

HPI Baja 5B/5T/5SC

No changes required, straight fit.

Losi 5IVE T , DBXL and Redcat Models

The supplied Clutch Housing must be machined to the same thickness as the original Losi version And you must fit the original CY fan cover (This is the one supplied with your Losi engine).

FID Dragon Hammer

No changes required, straight fit. (You May have to use the spacers included with the Dragon, but Not always

MCD Racing Cars

Straight fit into the RR5 models. Due to the larger crankcase, we do not recommend using the Rovan 32cc Engine in the older V4,EVO3,EVO2 and Pro-Line Models.

FG Modelsport / Smartec Cars

The larger crankcase interferes with the input shaft into the transmission, We do not recommed the Rovan 32cc Engine for these models.

GoPed Scooters

Straight fit to 54mm clutch models.

Note: New Engines require running in and setting up they are not ready to drop in, the Starter Guide needs to be followed & carb needles need to be set to prevent damage to the Engine, If you are unsure conact us before running the engine and we can help further

Colour: N/A

Position: Engine

Compatible with: HPI Baja 5B, KM Buggy, Rovan Buggy, KM Blade, Q-Baja, KM T1000, HPI Baja 5T, HPI Baja 5SC, Losi 5ive-T, TLR 5ive-B,Losi Mini WRC,King Motor X2,30 Degree North Truck,30 Degree North Buggy,FID Dragon Hammer,FID Dragon Hammer V2,VEKTA.5,VEKTA.5TT,
