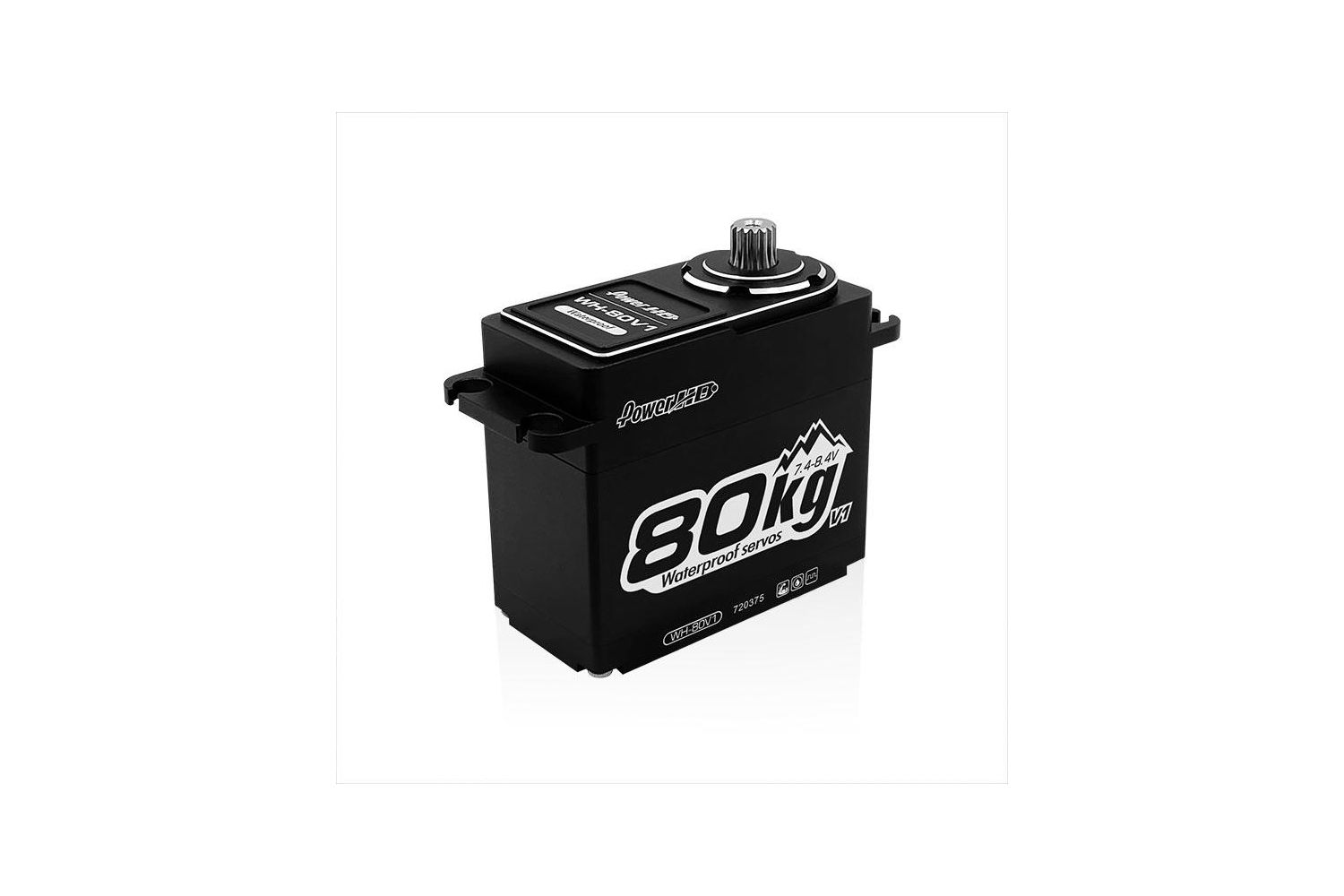

Power HD WH-80V1 Waterproof Servo – 80kg High Torque

The Power HD WH-80V1 is a high-torque, full-metal case waterproof servo designed for extreme RC performance. Perfect for 1/5th and 1/6th scale crawlers, monster trucks, and short course trucks, it offers exceptional strength and durability. Featuring a stainless steel gear train, double ball bearings, and 8.4V high-voltage compatibility, it fits popular models like the SCX6, Super Baja Rey, Super Rock Rey, Arrma Kraton, and Outcast. The 15T spline ensures a perfect fit with factory servo horns.

Specifications:

• Torque:
  • 60.0 kg-cm (833.2 oz-in) @ 6.0V
  • 75.0 kg-cm (1041.0 oz-in) @ 7.4V
  • 80.0 kg-cm (1110.0 oz-in) @ 8.4V
• Speed:
  • 0.20 sec @ 6.0V
  • 0.18 sec @ 7.4V
  • 0.17 sec @ 8.4V
• Operating Voltage: 6.0V – 8.4V
• Weight: 186g (7.05 oz)
• Bearings: Dual Ball Bearings
• Motor Type: DC Motor
• Gear Material: Copper & Steel
• Operating Temperature: -20°C to 60°C
• Working Frequency: 1520us / 333Hz
• Spline Count: 15T
• Dimensions: 59.4 × 29.5 × 53.4mm (2.34 × 1.16 × 2.10 in)

Perfect for high-performance RC builds! Order yours today and take your RC experience to the next level.

Note: Compatible with the Baja Symetrical Steering System Part no: 85280

Colour: Black
