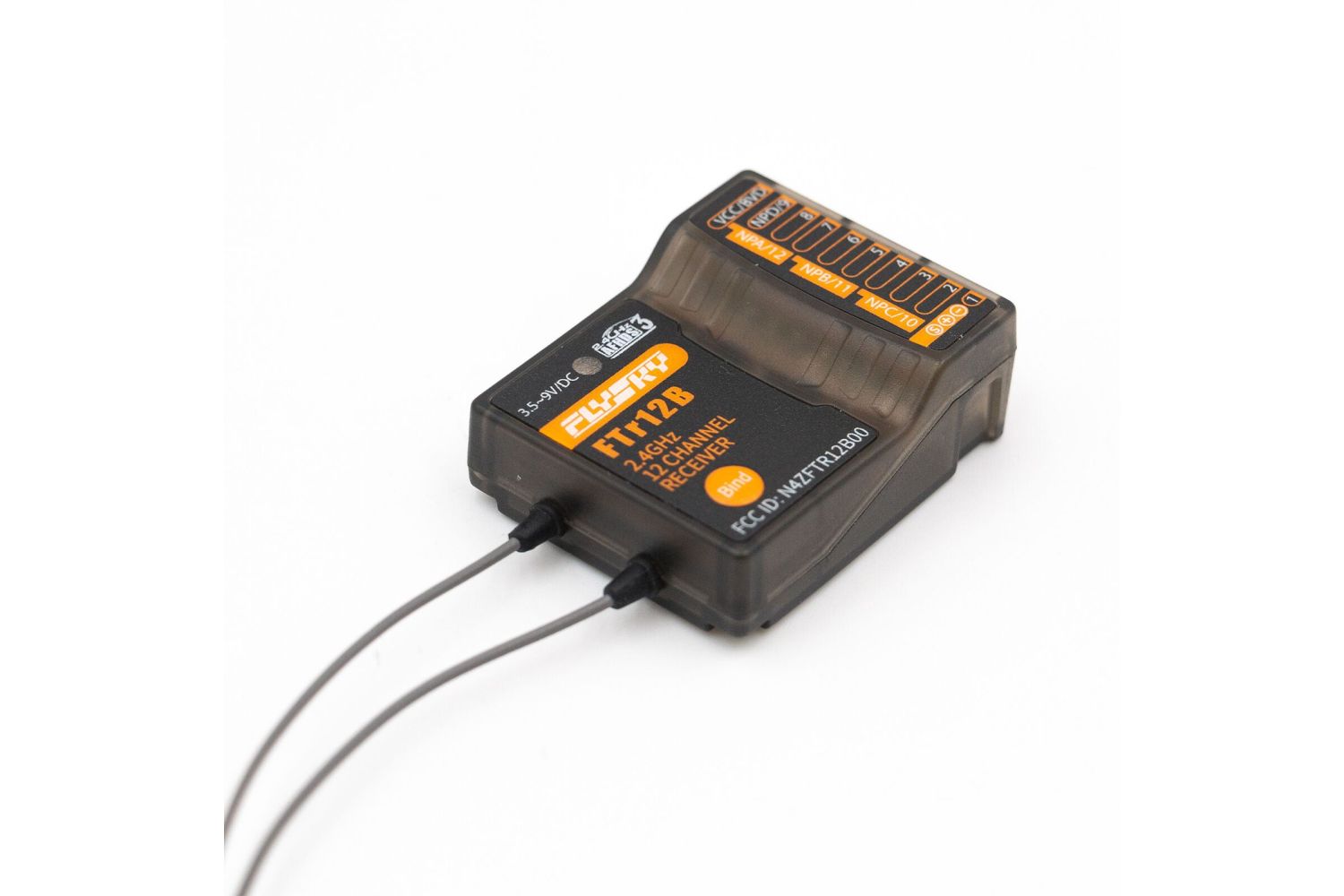

FlySky FTr12B 12-Channels AFHDS3 Two-Way Dual-Antenna Receiver Fixed-Wing Drone 2.4GHz Receiver

• Product parameters:
• Product model: FTr12B
• PWM channels: 12
• Wireless frequency: 2.4G
• Wireless protocol: AFHDS 3
• Antenna type: dual antenna
• Power supply: 3.5-9V
• RSSI: Support
• Data interface: PWM/PPM /i.bus/s.bus
• Temperature range: -10°℃—+60°C
• Humidity range: 20%-95%
• Online update: support
• Dimensions: 39* 32* 15mm
• Body weight: 15g
• Certification: CE, FCC ID: N4ZFTR12B00
• Compatible products: PL18, NB4, NB4 Lite, FRM301, FRM302

Product description:

• FTr12B adopts AFHDS3 (the third generation of the automatic frequency hopping digital system), has dual antennas, supports two-way transmission, can realize the return function, and supports i-bus out/s.bus switching and CH1 interface PWM/PPM switching and supports all AFHDS3 transmissions Machines and tuners.
