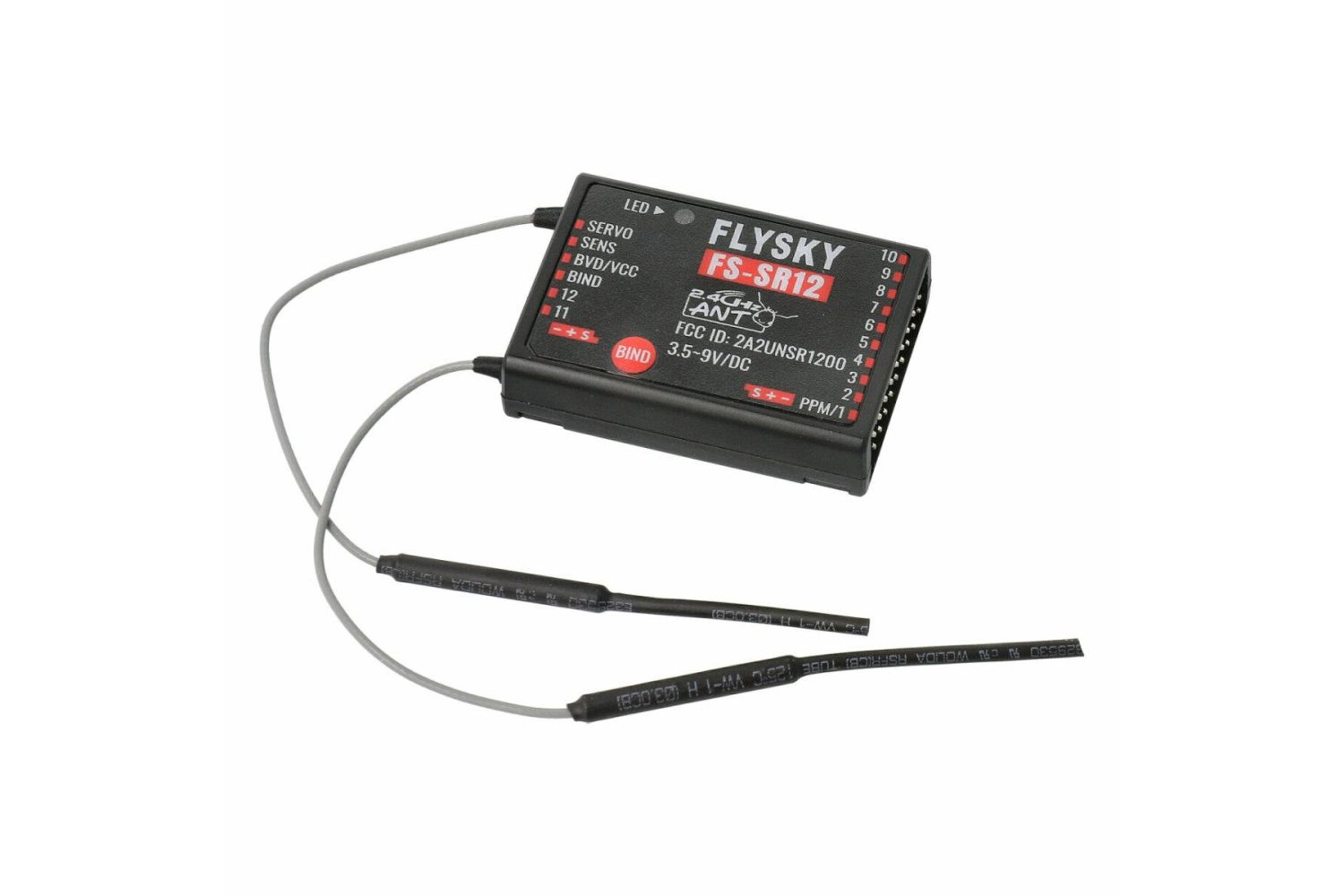

Flysky FS-SR12 12CH 2.4Ghz ANT Protocol PWM Output Receiver

Flysky FS-SR12 12CH 2.4Ghz ANT Protocol PWM Output Receiver

The SR12 receiver is the ideal partner when using a Flysky ANT Protocol remote control and is specially designed for the installation and output of PWM signals. It is supported by all ANT-capable transmitters and is Regulated to PPX4 Waterproof standards (commonly reffered to as Splashproof).

Technical Specifications

• PWM-Channels: 12
• RF: 2.4GHz ISM
• Protocol: ANT
• Antennas: Dual Input
• Voltage: 3.5-9V
• Range: >1500m (air)
• Output: PWM/PPM/i-BUS/S.BUS
• Resolution: 4096
• Temperature: -10°C to +60°C Max.
• Humidity: 20%-95%
• Update: Yes
• Dimensions: 44.8x32x11.3mm
• Weight: 13g
• Compatible Transmitter: all ANT-Transmitter

Colour: Black
