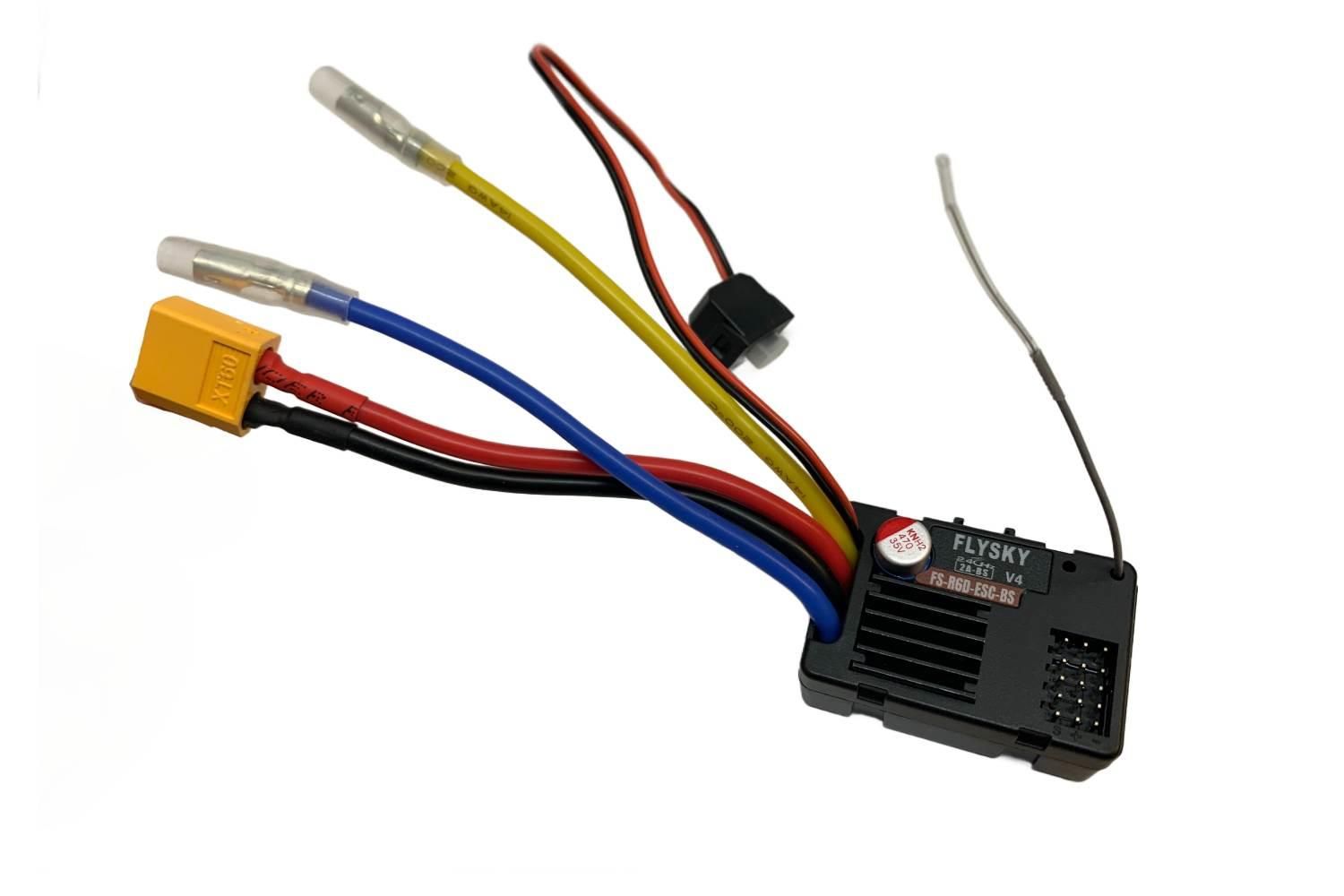

Flysky FS-R6D-ESC-BS 2.4ghz Receiver/ESC
FS-R6D-ESC-BS utilizing the 2A-BS protocol, the FS-R6D-ESC-BS is a 6-channel receiver integrated with an ESC (Electronic Speed Controller) and LED lighting group control. Featuring an external single antenna, it supports transmitter-end ESC parameter configuration. Its compact size makes it suitable for diverse vehicle model applications.
Product model：FS-R6D-ESC-BS
Compatible transmitter:FS-MG6-BS
Model type:1/8th scale crawler, onroad touring car, trucks
Channels:6
Number of car light groups:6(LED car light interface connected to FS-DB01 car light driver board)
RF:2.4GHz ISM
RF power:<20 dBm
2.4GHz Protocol:2A-BS
Channel Resolution: 4096
Input Power:LiPo（2-3S）/NiMH（5-9Cell）
BEC output:6V/5A
Current maximum:60A/240A
Supported motor type:Brush motor
Compatible motor:370、390、540 or 550 brush motor
Antenna Type: Built-in single antenna(Coaxial antenna)
Data Output ：PWM
Online Update：No
Temperature range :-10℃ ~ +60℃
Humidity range:20% ~ 95%
Waterproof :PPX7
Size:44.0mmX30.0mmX16.7mm
Weight:42.2g
Certification:CE, FCC ID：2A2UNR6D00
Colour: Black
Position: Front
