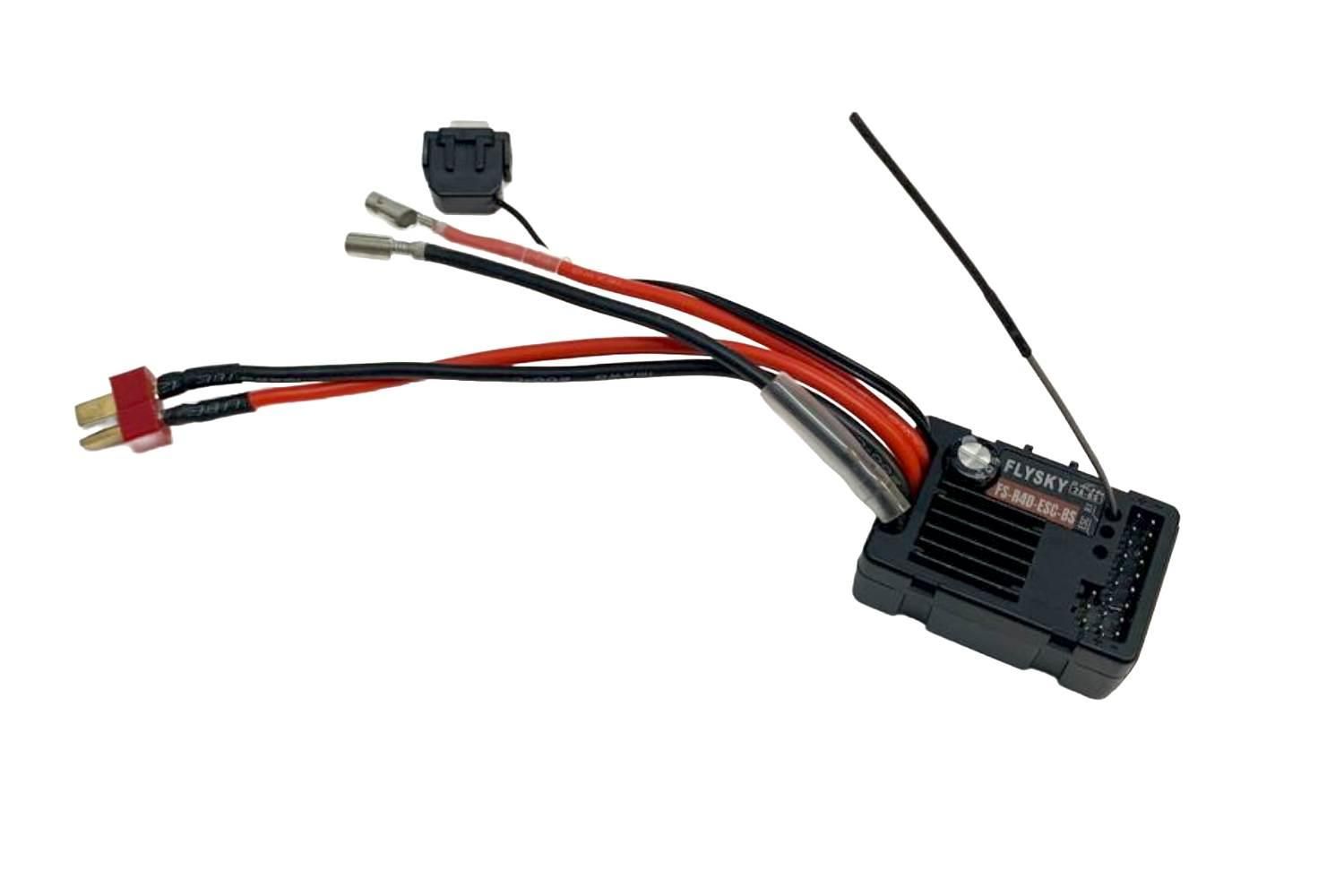

Flysky FS-R4D-ESC-BS 2.4ghz Receiver/ESC
FS-R4D-ESC is an ANT-compliant 2-in-1 two-way proprietary receiver, integrated with Electronic Speed Control (ESC) and LED light set control. Its features are as follows:
Product Model: FS-R4D-ESC
Compatible transmitters: FS-HW-G4P, FS-MG4, FS-G7P or FS-MG7, etc. (Refer to TX-RX , etc.)
Model Type: 1/10 crawler, on-road car, off-road short course truck, and truck
Number of Channels: 4
Number of Light Interfaces: 6
RF: 2.4GHz ISM
2.4G Protocol: ANT
Antenna: Single External Antennas
Input Power: LiPo （2-3S）/ NiMH（5-9Cell）
BEC Output: 6V/3A
Continuous/Peak Current: 40A/200A
Motor Type: Brushed Motor
Applicable Motors: 550, 540, 390, 370 or 280 Brushed Motor
Data output: PWM
Resolution: 4096
Temperature Range: -10℃ to +60℃
Humidity Limit: 20%-95%
Waterproof: PPX7
Online Update: None
Dimensions: 44*30*16.7mm
Weight: 43g (Without pin header)
Certification: CE，FCC ID: 2A2UNR4DESC
Colour: Black
Position: Front
| Colour | Black |
|---|---|
| Position | Front |
| Brand | Fly Sky |
