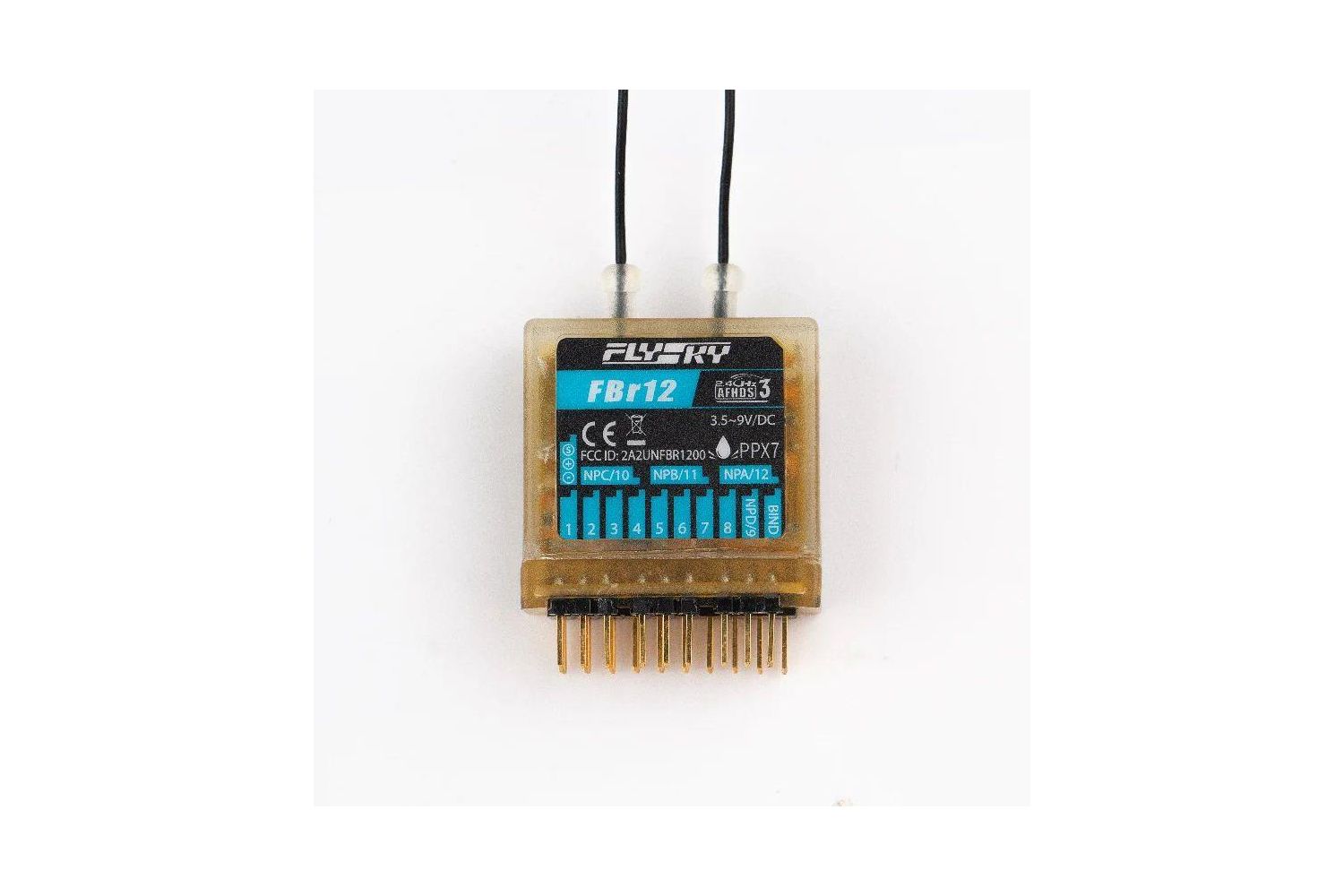

FlySky FBr12 12-Channel PPX7 AFHDS3 Waterproof Receiver

FlySky FBr12 12-Channel PPX7 AFHDS3 Waterproof Receiver

OVERVIEW:

FBr12 is a 12-channel receiver based on AFHDS3 third-generation automatic frequency hopping digital system protocol. This receiver features waterproof level PPX7, a dual external antenna, and unidirectional and bi-directional transmission. It supports four Newport function interfaces. Newport interfaces can be customized with theinput or output signal type: i-BUS2/S.BUS/i-BUS/PPM, etc. Built-in BVD battery voltage detection function.lt adapts all transmitters or RF modules which support AFHDS 3 protocol.

Description:

• Product Model: FBr12
• FlySky FBr12 2.4GHz 12CH Enhanced AFHDS 3 Receiver
• Compatible transmitters: All transmitters support AFHDS3 (PL18, NB4, NB4+, Noble Pro, etc.)
• Model Type: Car/boat etc
• PWM Channels: 12
• RF: 2.4GHz ISM
• 2.4G Protocol: AFHDS 3
• Antenna: Dual Antennas
• Input Power: 3.5-9V
• Data Output: PWM/PPM/i.BUS/S.BUS/i-BUS 2
• Temperature Range: -10℃ to +60℃
• Humidity Limit: 20%-95%
• Online Update: Yes
• Dimensions: 32.4*38.3*14mm
• Weight: 18g (Without pin header)
• Certification: CE，FCC ID: 2A2UNFBR1200

Package Included:

1 x FBr12 Receiver(approx 35cm antennae length)

Colour: Black

Position: Front
