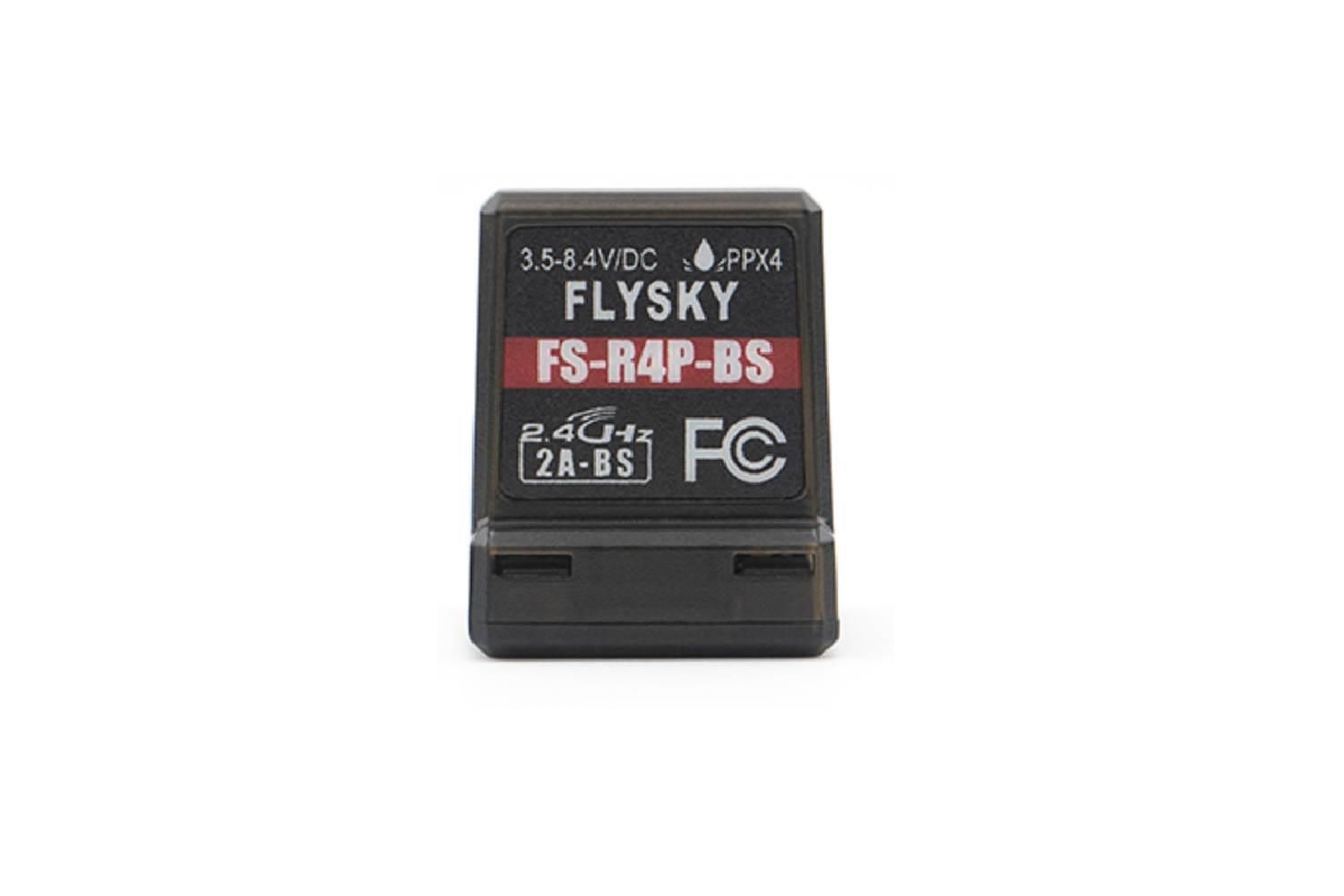

Flysky FS-R4P-BS 2.4ghz Receiver

Flysky FS-R4P-BS 2.4ghz Receiver

FS-R4P-BS is a four-channel unidirectional receiver using the 2A-BS protocol. This receiver features a built-in antenna, PPX4-level waterproofing, a compact design, automatic pairing upon power-up, outputs PWM signals, and is suitable for use with various model cars running the 2A-BS Protocol.

• Product Model ：FS-R4P-BS
• Channels ：4
• Model Type ：Car
• RF ：2.4GHz ISM
• 2.4GHz Protocol ：2A-BS
• Input Power：3.5 ~ 8.4V/DC
• Working current : ＜30mA/5V
• Antenna Type： Built-in single antenna
• Data Output ：PWM
• Temperature Range ：-10℃—+60℃
• Humidity Range ：20—95%
• Waterproof : PPX4
• Online Update： No
• Color： Black
• size：22.6*20.6*25.5mm
• weight： 6g
• Certification： CE，FCC

Colour: Black

Position: Front
