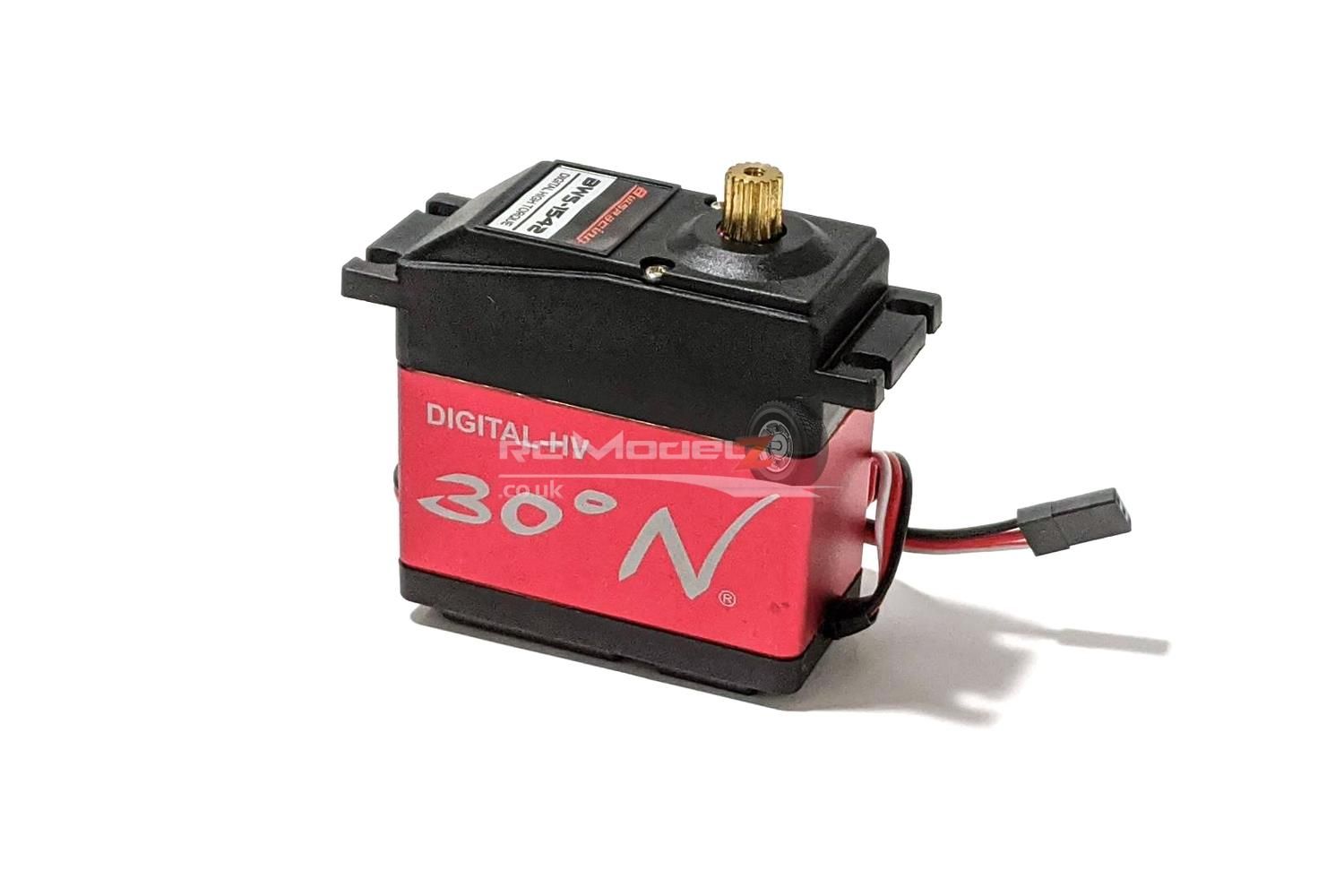

BWS-1542 42kg Metal Gear Servo

BWS-1542 42kg Metal Gear Servo

Servo:

• Brand: 30°N
• Operating Voltage: 7.4v - 8.4V
• Operating Speed (at no load): (7.4v) 0.17±0.01 sec/60°
• Operating Speed (at no load): (8.4v) 0.15±0.01 sec/60°
• Running Current (at no load): (7.4v) 1800± 30mA
• Running Current (at no load): (8.4v) 2400± 30mA
• Stall Torque (at locked): (7.4v) 38± 0.20kg.cm
• Stall Torque (at locked): (8.4v) 42± 0.20kg.cm
• Weight: 188±1g
• Spline: 15 tooth
• Amplifier Type: Digital Control

Spec:

• Weight - 188g
• A(mm) - 70
• b(mm) - 60
• C(mm) - 60.5
• D(mm) - 30
• E(mm) - 75
• F(mm) - 47.5

Package Included:
1 x Servo BWS-1542 Metal Gear Digital Servo

Colour: Black

Position: Front

Compatible with: SDT,
