Bartolone Racing 34cc (G320RC) Race Ported Top End

Bartolone Racing 34cc (G320RC) Race Ported Top End

Factory Teams like TLR and MOD demand the highest levels of performance! Their engine of choice is the Bartolone Racing 34cc Piston Port. Now you can run the same cylinder that TLR and MOD’s top 1/5 scale Pro’s run. We could give you all the numbers and dyno sheets, but the results speak for themselves. The Bartolone Racing 34cc cylinder is a proven winner with major wins such as National, World and MOD’s series.

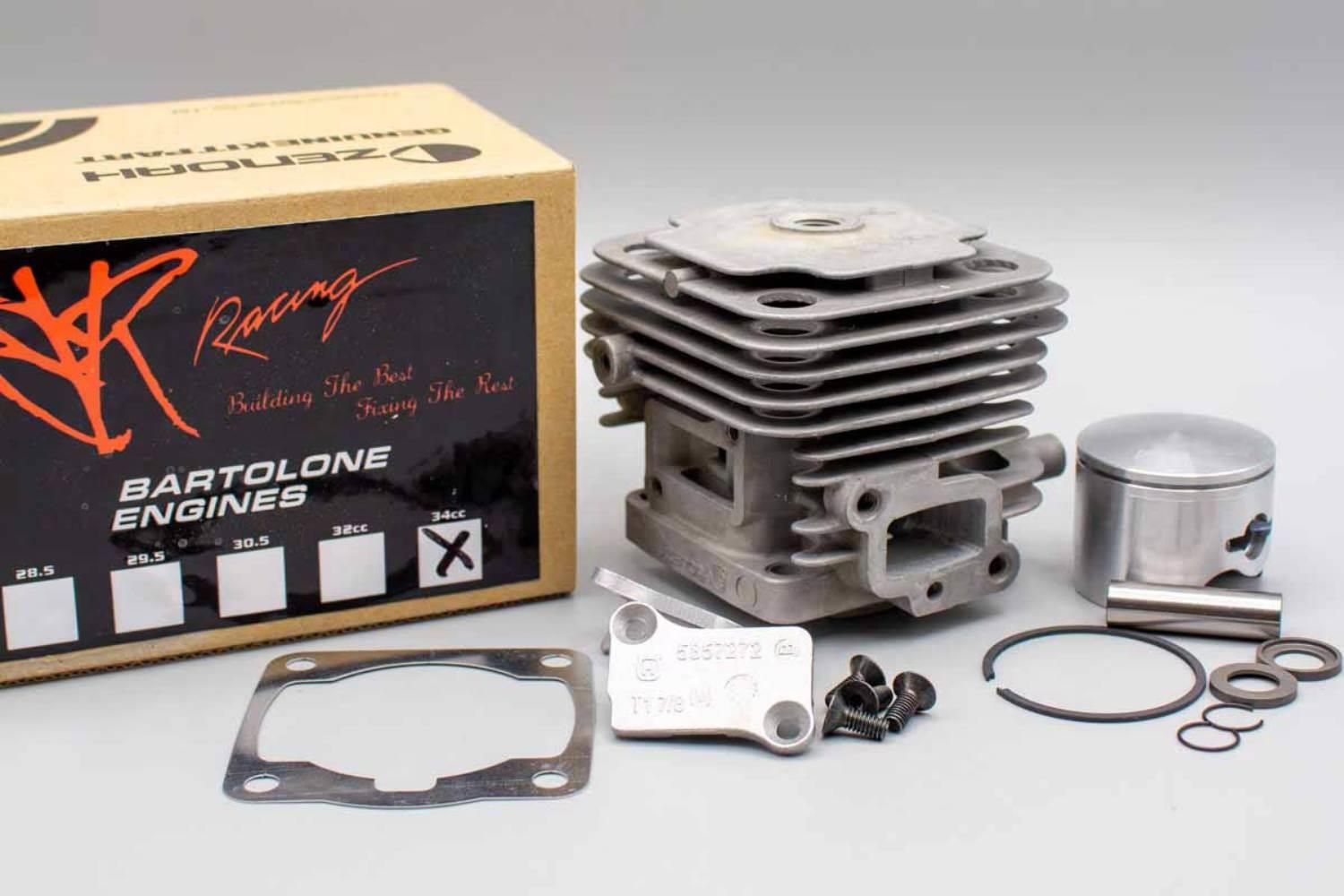

This kit comes with a Zenoah piston that has been machined for performance. The cylinder has a 5th axis CNC machined exhaust port, as well as four 5th axis CNC transfer ports.

This cylinder includes a special base gasket for maximum performance. The gasket has a special thickness to allow for proper squish clearance. The inner dome of the cylinder has been cut and modified. This cylinder gasket requires a high temp silicone sealant be used to seal the cylinder to the crankcase. This cylinder kit is made to be used with the 30mm stroker crankshaft The Part# DD404

Also included: 38mm piston ring, wrist pin clips and thrust washers. The wrist pin bearing is not included and is required to be purchased separately. The Part#  CA296

• Make sure that the cylinder is clean of any metal shavings before installation onto engine.
• Apply a high temperature silicone gasket sealant on the cylinder or case (such as Threebond 1211 Silicone Liquid Gasket, Yamanbond, or Hondabond High Temp Silicone Liquid Gasket Sealant). Apply a small amount of silicone gasket sealant on both sides of the gasket before installing onto engine case.

Failure to apply silicone sealant to gasket could cause engine damage and/or poor engine performance.

Colour: Grey

Position: Engine
