Baja Super Heavy Duty Clutch Bell, Spur Brace Kit

Baja Super Heavy Duty Clutch Bell, Spur Brace Kit

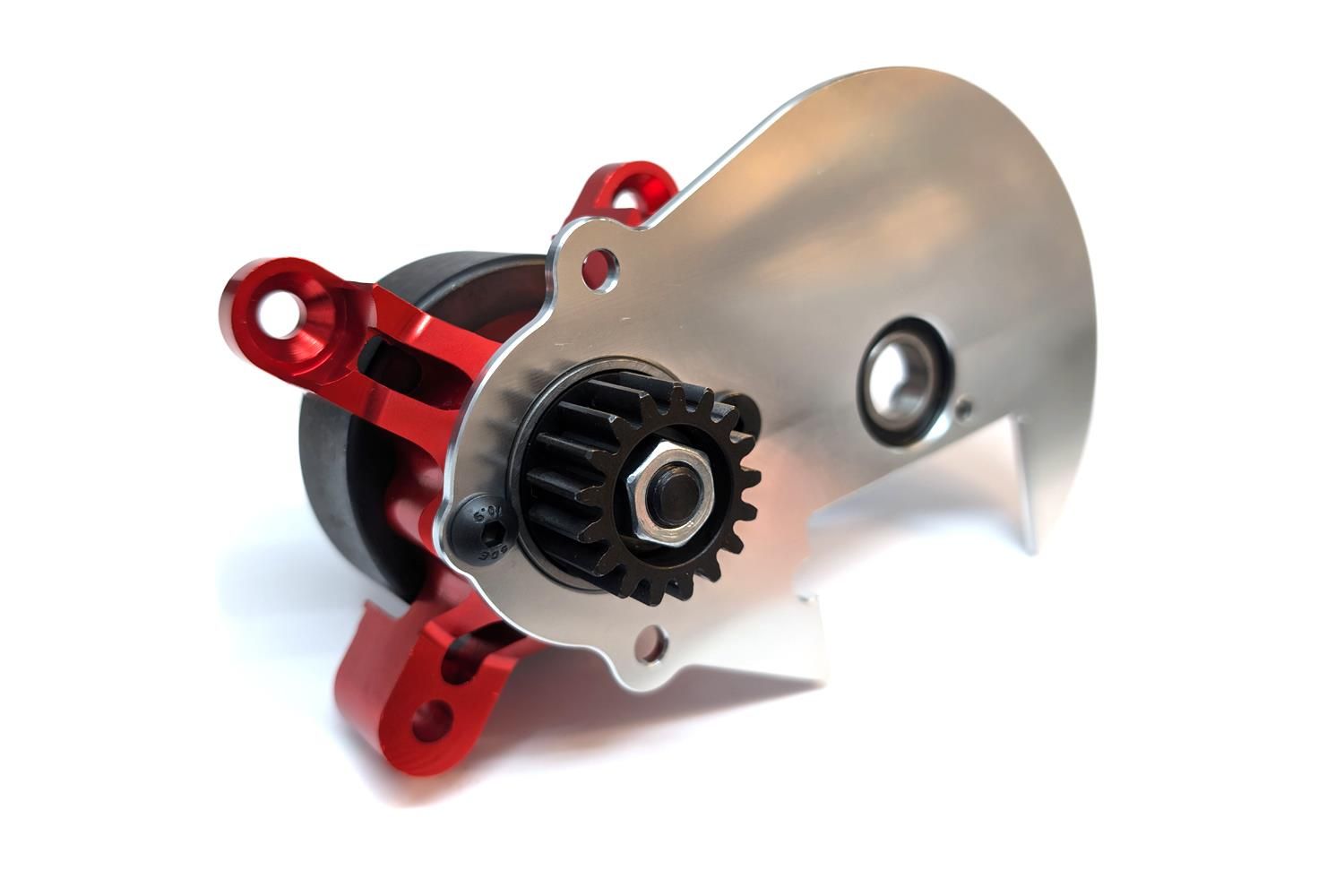

Rovan's Super Heavy Duty Clutch Bell Carrier System utilizes a double bearing carrier with a heavy duty clutchbell coming with a 15mm bell shaft & 9mm hex drive. Giving you a super strong clutch brace whilst keeping your system compatible with aftermarket pinions such as the Vertigo gt186 Pinions.

• Compatible up to an 18t pinion, for larger pinions you would need clight modification to the screw to give enough clearance.

Kit Comes with:

• Integrated Big Bearing Spur Gear Plate
• Heavy Duty Clutch Bell (15mm Shaft, 9mm Hex)
• 17T Pinion Gear (9mm Hex Drive)
• Double Bearing Carrier with Bearings pre-installed (6002RS x2)
• Hex Wrench
• Screws

Fitting this Replaces the following stock parts:

• Stock Gear Plate (A005 / 65005 / HPI #87485 )
• Spur Gear Mount Set 2 - (B078-B / 66069 / HPI #85436 )
• U Bearing Bracket (B085-B / 66076 / HPI #85436)
• D03 Ball Bearing (D03-1 / 68040)
• Clutch Bell (A069 / 65060 / HPI #86490)
• Clutch Bell Carrier (B077 / 66086 / HPI #85436)
• Pinion Gear (A022 / 65022 / HPI #86493)

Colour: Red
