Rovan 45cc 4 Bolt Engine for LT / X2 / 5ive

Rovan 45cc 4 Bolt Engine for LT / X2 / 5ive

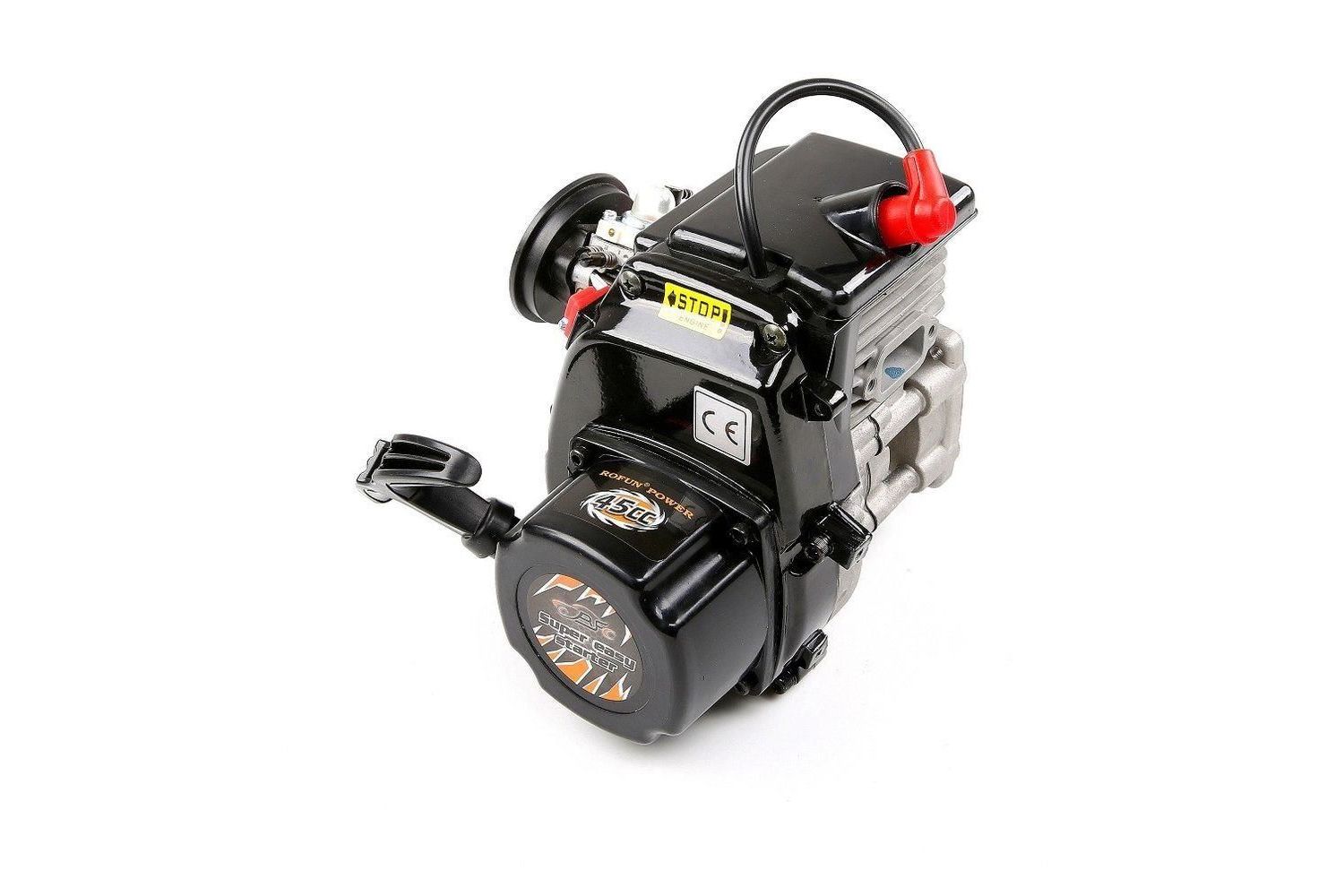

This is the the New 45cc Engine from Rovan

Featuring an all New Design - Redesigned cylinder, crankcase, crankshaft, double ring piston, etc for an Absolute Explosion of Power

This Rovan 45cc engine has a 43mm bore, and 31mm stroke and a double ring piston giving

• Improved heat transfer due to the addition of the second ring
• Engine performance durability due to 2nd ring’s ability to seal if first ring’s seal becomes compromised

These include a new cylinder design with a Walbro 1191 Carb already fitted

They also come with an 8000rpm clutch and a Rovan Easy Start pull starter fitted

So it's ready to drop into your application of choice to give you a Huge step up in engine size, while keeping your usual engine placement and spacing.

These engines do have a much larger exhaust port than normal engines so will require a new exhaust or modification to your existing one.

Engine Specification

• Cylinder displacement: 345.018cc / 2.747 cu.inch
• Cylinder bore: 43 mm / 1.69 inch
• Cylinder stroke: 31 mm / 1.22 inch
• Carburettor: Walbro
• Carburettor model name: WT-1191
• Ignition system: TCI
• Spark plug: NGK CMR7H
• Start system: Easy starter
• Power: 2.9kw/13000rpm
• Idle RPM: 4000(+-)200
• Max RPM: 16500
• Fule Ratio: 25/1
• Weight: 2.3kg

Size

• LxWxH 17x18.1x18.0 cm / 6.569x7.12x7.08 inch

Fitment Guide:

HPI Baja 5B/5T/5SC

You Will Need a Stock Zenoah G320 Clutch Housing with the drilled hole for the chassis bolt (Part Number 585225201 or 670053

Losi 5IVE T , DBXL and Redcat Models

Should be Direct fit.

FID Dragon Hammer

No changes required, straight fit.

(You May have to use the spacers included with the Dragon, but Not always)

Note: New Engines require running in and setting up they are not ready to drop in, the Starter Guide needs to be followed & carb needles need to be set to prevent damage to the Engine, If you are unsure contact us before running the engine and we can help further

Colour: N/A

Position: Engine

Compatible with: King Motor X2, Rovan LT, Losi 5ive-T, Losi DBXL,
