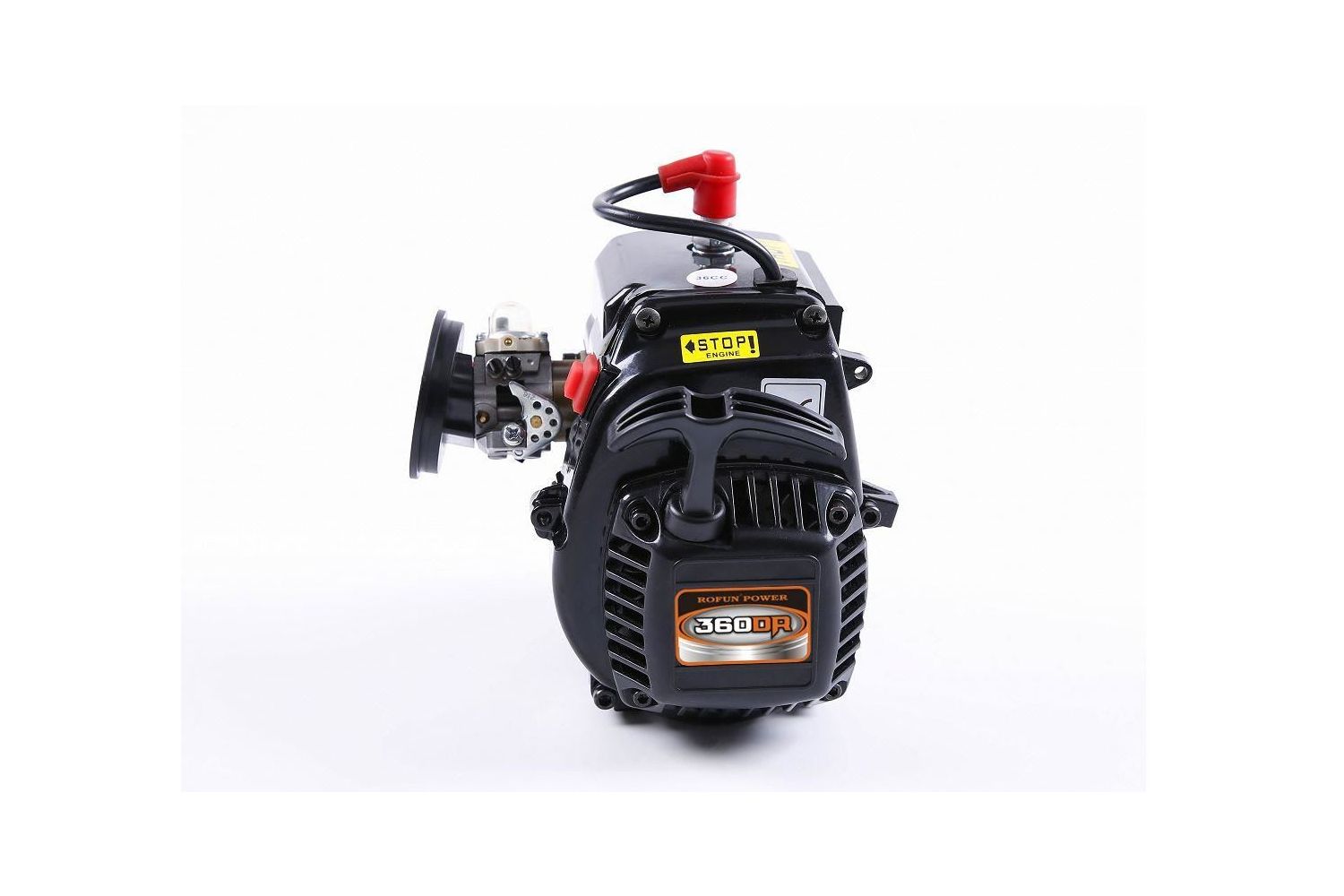

Rovan 36cc Twin Ring 4 Bolt Engine LT

Rovan 36cc Twin Ring 4 Bolt Engine LT

allow the Longer stroke for a true 36cc.

These include a new cylinder design twin piston ring head with the Walbro 1107 Carb already fitted. It also has the Rovan easy start setup and an angle air filter plate.

This is a Double ring piston which will

• Improved heat transfer due to the addition of the second ring
• Engine performance durability due to 2nd ring’s ability to seal if first ring’s seal becomes compromised

And it's ready to drop into your application of choice to give you a Huge step up in engine size, while keeping your usual engine placement and spacing.

Engine Specification

• Cylinder displacement: 35.838 cm³ / 2.187 cu.inch
• Cylinder bore: 39 mm / 1.5 inch
• Cylinder stroke: 30 mm / 1.8 inch
• Carburettor: Walbro
• Carburettor model name: WT-1107
• Ignition system: TCI
• Spark plug: NGK CMR7H
• Start system: Easy starter

Size

• LxWxH 16.7x17.8x19.6 cm / 6.57x7x7.72 inch

Fitment Guide:

HPI Baja 5B/5T/5SC

You Will Need a Stock Zenoah G320 Clutch Housing with the drilled hole for the chassis bolt (Part Number 585225201 or 670053.

Losi 5IVE T , DBXL and Redcat Models

Should be Direct fit..

FID Dragon Hammer

No changes required, straight fit.

(You May have to use the spacers included with the Dragon, but Not always

FG Modelsport / Smartec Cars

The larger crankcase interferes with the input shaft into the transmission,

We do not recommend the Rovan 36cc Engine for these models.

Note: New Engines require running in and setting up they are not ready to drop in, the Starter Guide needs to be followed & carb needles need to be set to prevent damage to the Engine, If you are unsure contact us before running the engine and we can help further

Note: Images are for illustrative purposes only; this engine does not come with removable transfer ports

Colour: N/A

Position: Engine

Compatible with: HPI Baja 5B, KM Buggy, Rovan Buggy, KM Blade, Q-Baja, KM T1000, HPI Baja 5T, HPI Baja 5SC, Losi 5ive-T, TLR 5ive-B,Losi Mini WRC,King Motor X2,30 Degree North Truck,30 Degree North Buggy,FID Dragon Hammer,FID Dragon Hammer V2,VEKTA.5,VEKTA.5TT,
