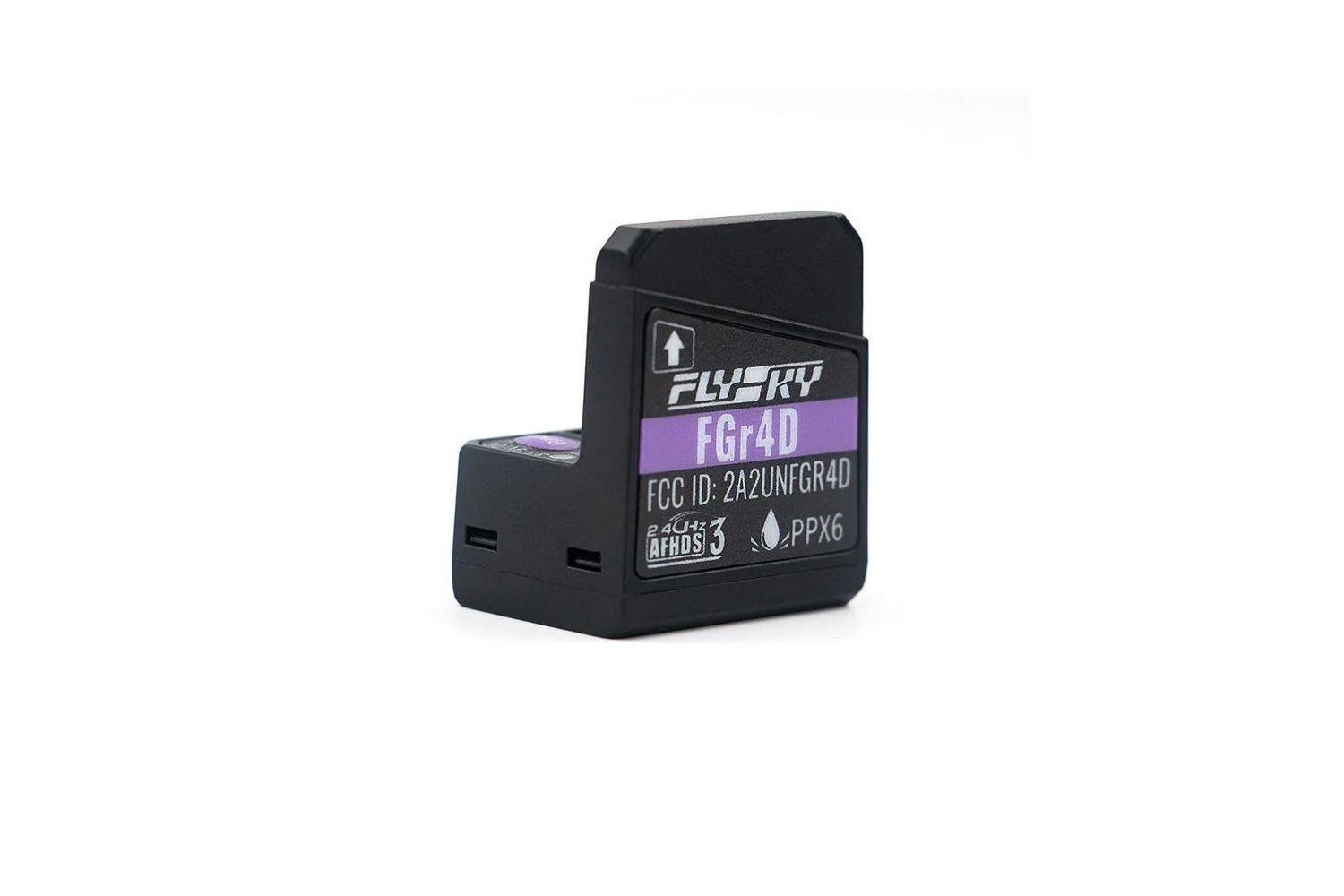

FlySky FGr4D 4Ch AFHDS3 PPX6 Receiver

FlySky FGr4D 4Ch AFHDS3 PPX6 Receiver

OVERVIEW:

2.4GHz 4 channel receiver is compatible with All Transmitters with AFHDS3 Protocol, great for RC Car and RC Boat. The FGr4D is a 4-channel two-way receiver based on AFHDS3(Third Generation Automatic Frequency Hopping Digital System) protocol. This receiver features dual antennas, PPX6nanowaterproof. It supports 4 New port function interfaces(Newport canbe customizedwithinputoroutput signaltypes: i-BUS2/S.BUS/i-BUS/PPM). Ultra-small size and ultra-lightweight, effectively saves space and reduces the item's weight.

Description:

• Product Model: FGr4D
• Adaptive Transmitter: All Transmitters with AFHDS3 Protocol
• Model Type: Carsor Boats, ect.
• PWM Channels: 4
• RF: 2.4GHz ISM
• 2.4G Protocol: AFHDS3
• Maximum Power: <20dBm (e.i.r.p.) （EU）
• Antenna: Bulit-in Dual Antennas
• Input Power: 3.5~9V/DC
• Working Current: ≤ 50mA/5V
• Data Output: PWM/PPM/i-BUS2/S.BUS/i-BUS
• Temperature Range:-10℃ ~ +60℃
• Humidity Range: 20%~ 95%
• Water Proof: PPX6
• Online Update: Yes
• Size: 30.3*25.8*20mmWeight: 7.2g

Package Included:

• 1* FGr4D receiver
• 1* Cable
• 1* User Manual
• 1* Stickers

Colour: Black

Position: Front
