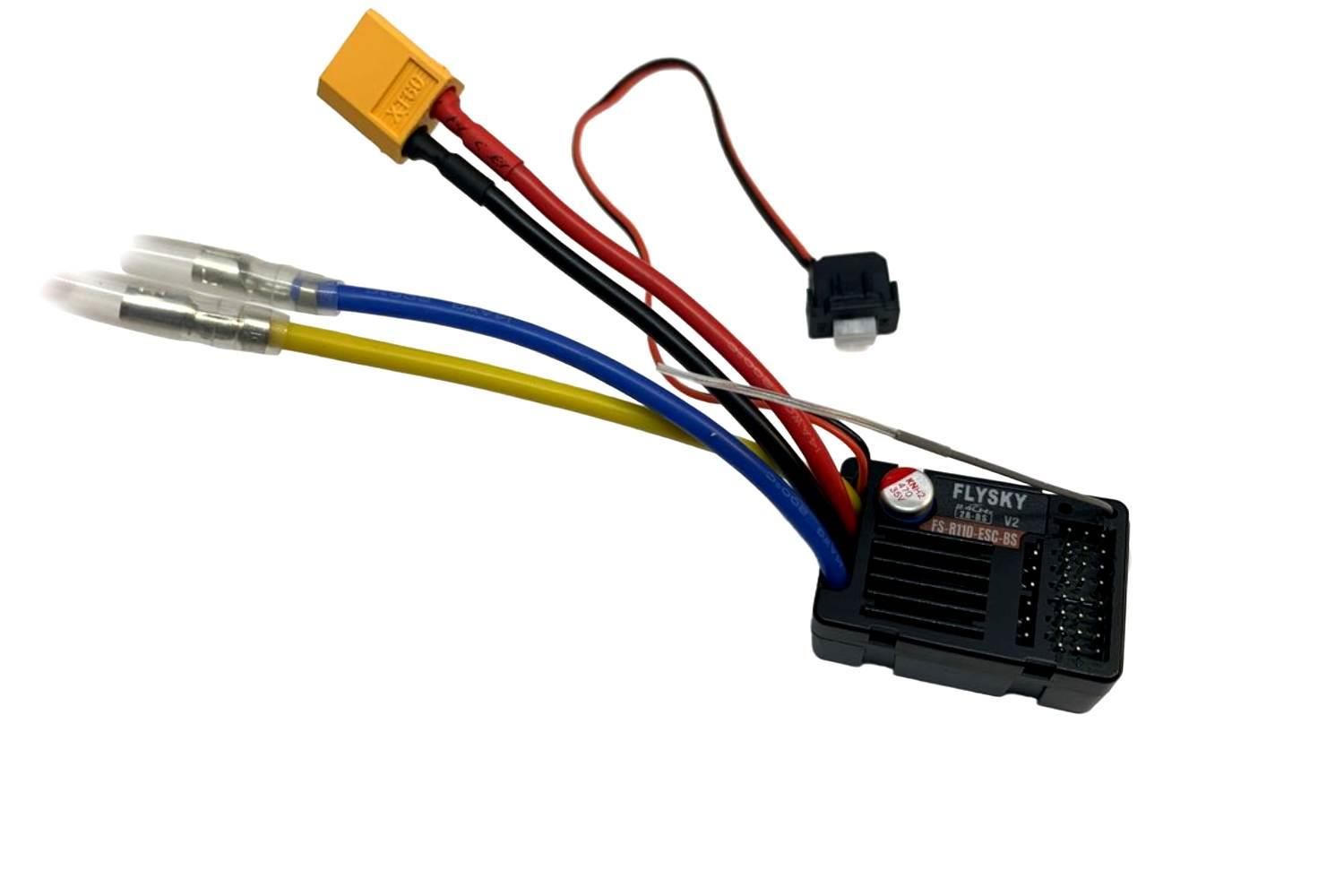

Flysky FS-R11D-ESC-BS 2.4ghz Receiver/ESC
FS-R11D-ESC-BS is an 11-channel dual-function receiver utilizing the 2A-BS protocol. It integrates ESC and LED light group control into one unit. With an external single antenna, it can output PWM signals and vehicle light control signals, supporting bi-directional transmission. It features automatic pairing upon power-up, and allows for ESC parameter configuration through the transmitter, making it suitable for use with various model cars.
Product Model ：FS-R11D-ESC-BS
Channels ：11
Number of car light groups: 6(LED car light interface connected to FS-DB01 car light driver board)
Model Type ：1/8th scale crawler, onroad touring car, trucks
RF ：2.4GHz ISM
2.4GHz Protocol ：2A-BS
Input Power： Lipo（2~3S）/NiMH（5~9Cell）
BEC output: 6V/5A
Current maximum: 60A/240A
Antenna Type： External single antenna
Supported motor type: Brush motor
Compatible motor: 370、390、540 or 550 brush motor
Data Output ：PWM
Temperature Range ：-10℃—+60℃
Humidity Range ：20—95%
Resolution: 4096
Waterproof : PPX7
Online Update： No
Color： Black
size： 44.0mm*30.0mm*16.7mm
weight： 45g
Certification： CE，FCC ID:2A2UNR11D00
Colour: Black
Position: Front
| Colour | Black |
|---|---|
| Position | Front |
| Brand | Fly Sky |
