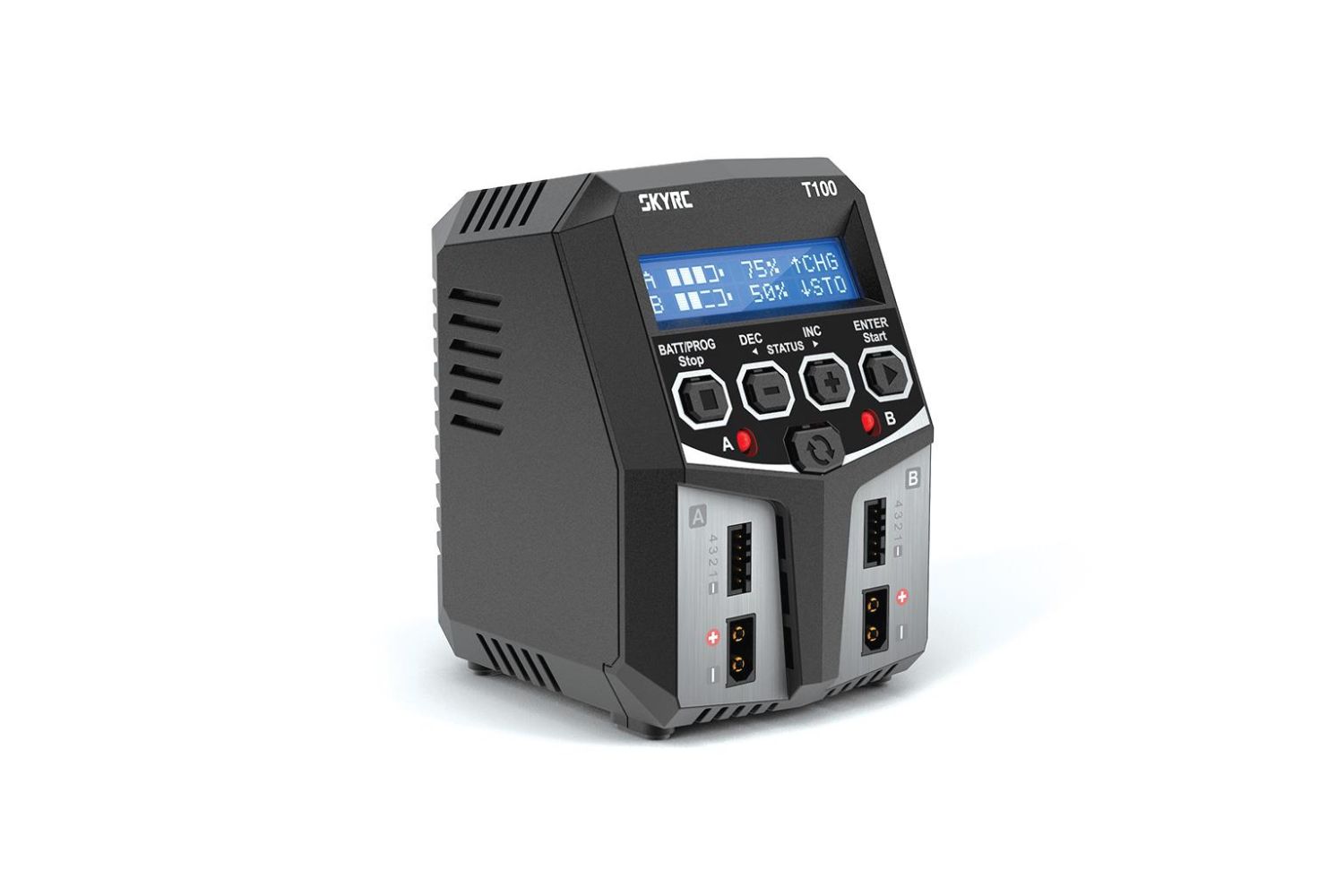

SkyRC T100 Dual Battery LiPo Balance Charger

SkyRC T100 is a twin-channel charger with two independent circuits which can charge batteries of varying chemistries (LiPo / LiFe / Lilon / LiHV / NiMH / NiCd / Pb) simultaneously. Its sleek design allows easy front-loading plug-in convenience of balancing and XT60 ports. It is not only compact in size but also powerful in output with maximum 100W charging power and 5A charging current which makes charging more efficient. With the new AGM and cold charge modes, the user is free to charge their PB and AGM batteries on cold days.

Twin-channel Charger

SkyRC T100 allows you to plug 2 batteries into one charger simultaneously, and it will intelligently and automatically initiate the charging of 2 batteries at once to their maximum capacity. To top it all, the batteries being charged do not even need to have the same configuration. You can connect different chemistry(NiMH / NiCd / LiPo / LiFe / Lilon / LiHV / Pb)batteries into any of the charging ports.

AGM & Cold Charge Modes for PB Battery

SkyRC T100 can charge AGM(Absorbent Glass Mat) battery and also can be used for charging PB battery at very low temperatures.

Embedded XT60 Battery Connector

By embedding the XT60 battery connector in the charger, it is more convenient & safer for charging the most popular battery with XT60 connector and avoid the possibilities of reverse polarity for it.

Specifications:

• Case Material: Plastic
• Case Size: 90x100x127mm
• Weight: 500g
• Battery Meter
• Display Type: 2x16LCD Display
• Backlight: Blue Power
• Input Voltage: AC 100-240V
• Charge Wattage: 50Wx2

Battery Battery:

• Types/Cells: LiPo/LiFe/LiIon/LiHV: 2-4 cells
• NiMH/NiCd: 6-8 cells
• Pb:6/12

 Battery Capacity Range:

• LiPo/LiIon/LiFe/LiHV:100-50000mAh
• NiMH/NiCd:100-50000mAh
• Pb: 100-50000mAh

Charge and Discharge:

• Charge Voltage LiPo: 4.18-4.25V/cell
• LiFe: 3.58-3.7V/cell
• LiIon: 4.08-4.2V/cell
• LiHV: 4.25-4.35V/cell
• NiMH/NiCd: Delta peak detection: 3-15mV/cell ; Default: 4mV/cell

Discharge Cut-off Voltage:

• LiPo:3.0-3.3V/cell
• LiFe:2.6-2.9V/cell
• LiIon: 2.9-3.2V/cell
• LiHV: 3.1-3.4V/cell
• NiMH/NiCd:0.1-1.1V/cell

Key Features:

• Charge Current: 0.1A-5.0A
• Balance Cells: 2-4 cells
• Balance Current: 300mA/cell
• Safety Timer: 1-720minutes & OFF
• Charge Method:CC/CV for Lithium batteries.
• Delta-peak Sensitivity for NiMH/NiCd batteries.
• CC/CV and float charge for PB batteries.
